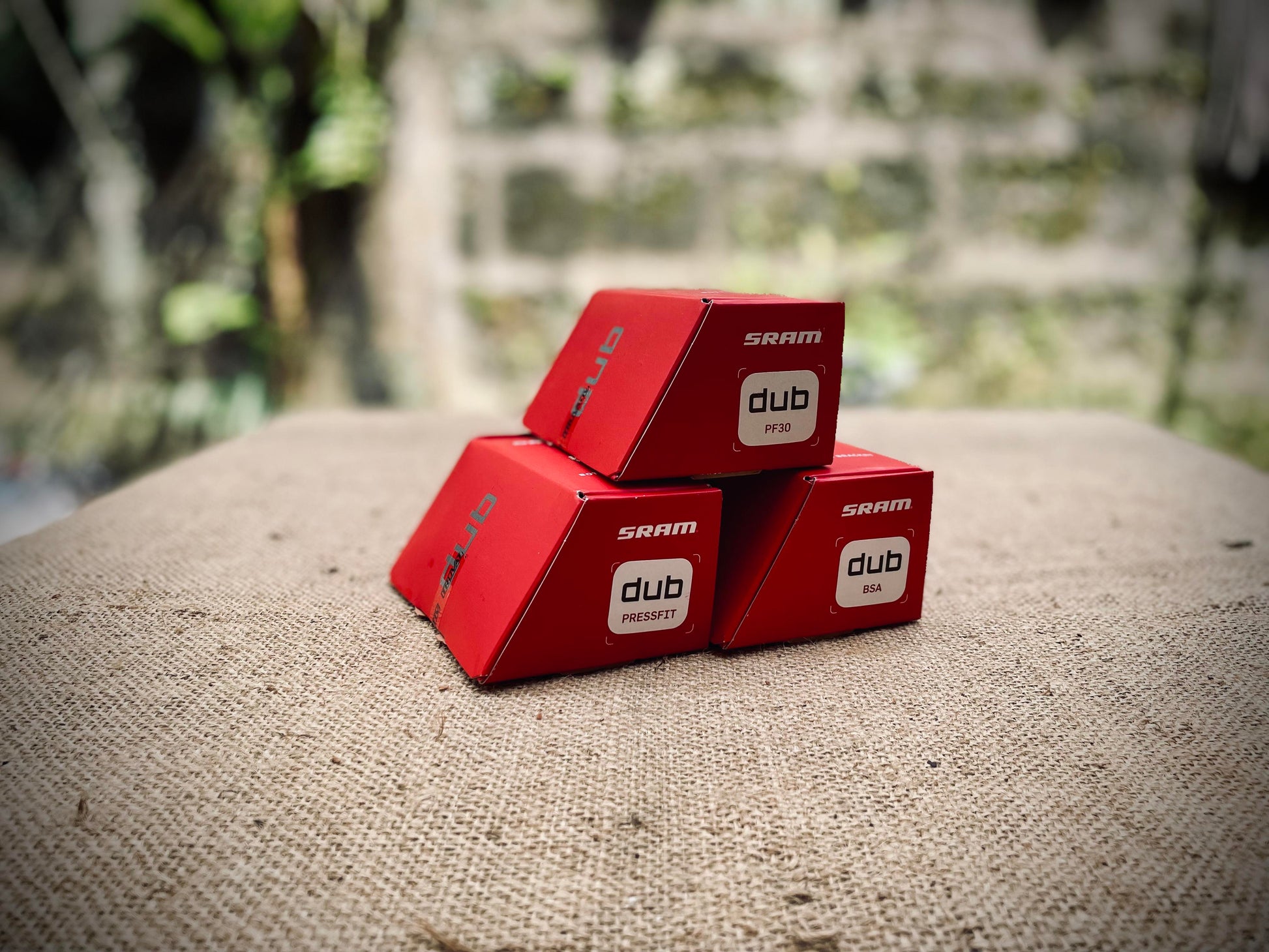

Sram Bottom Bracket DUB
The new SRAM DUB bottom bracket series has a simple job-connect your crankarms and protect the smooth, long-lasting application of power to your drivetrain. To allow that singular focus, we've engineered the DUB spindle to be the one true unifying component. One oversized spindle to work across every bottom bracket standard. For better crankarm compatibility. For better protection from the elements. For longer-lasting performance. To be stronger, smoother, simpler. Now, back to the ride.
BB-FRAME INTERFACE | BB30, BB30 (Road Wide: 73mm), BB30 (Road: 73mm), BB30 83-A |
---|---|
CHAINLINE | n/a |
SPINDLE LENGTH | n/a |
SUPPORT E-TYPE FD | n/a |
CRANK-BB INTERFACE | DUB |
BEARING TYPE | Standard |
SPINDLE DIAMETER | DUB |
CUP MATERIAL | Aluminum |
BB-FRAME INTERFACE | PressFit (MTB/DH: 104.5mm), PressFit (MTB/DH: 107mm), PressFit (MTB: 121mm), PressFit (MTB: 89/92mm), PressFit (Road: 86.5mm) |
---|---|
CHAINLINE | n/a |
SPINDLE LENGTH | n/a |
SUPPORT E-TYPE FD | n/a |
CRANK-BB INTERFACE | DUB |
BEARING TYPE | Standard |
SPINDLE DIAMETER | DUB |
CUP MATERIAL | Steel |
WEIGHT (G) | 72 |
WEIGHT BASED ON | BB92 |
BB-FRAME INTERFACE | BB386, PF30 (100mm), PF30 (68), PF30 (68-73mm), PF30 (68or73mmorBBRight), PF30 (73mm), PF30 (83mm), PF30 (MTB Ai: 83-A mm), PF30 (Road Ai: 83-A mm), PF30 (Road BBRight: 79/83mm), PF30 (Road: 73mm) |
---|---|
CHAINLINE | n/a |
SPINDLE LENGTH | n/a |
SUPPORT E-TYPE FD | n/a |
CRANK-BB INTERFACE | DUB |
BEARING TYPE | Standard |
SPINDLE DIAMETER | DUB |
CUP MATERIAL | Aluminum |
