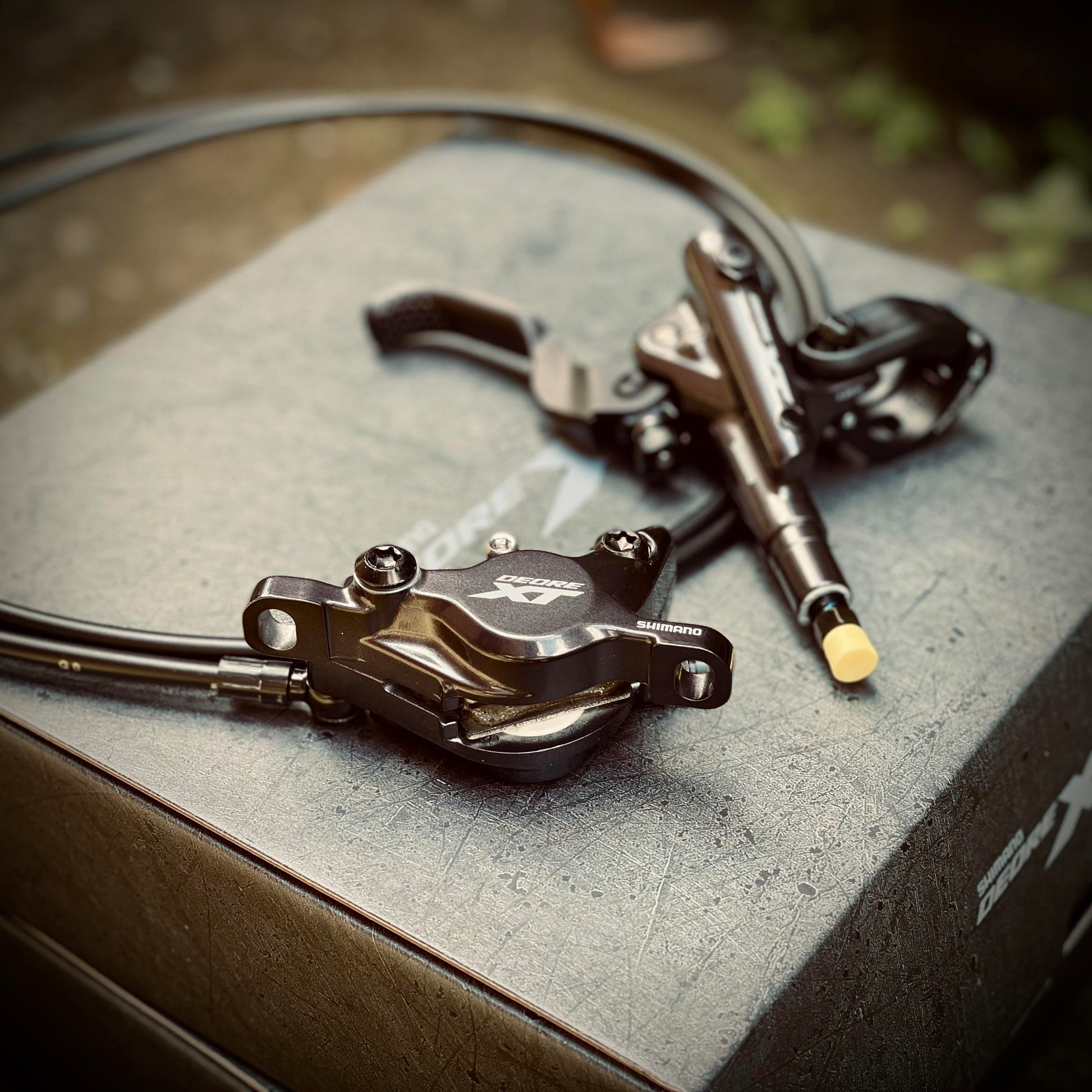

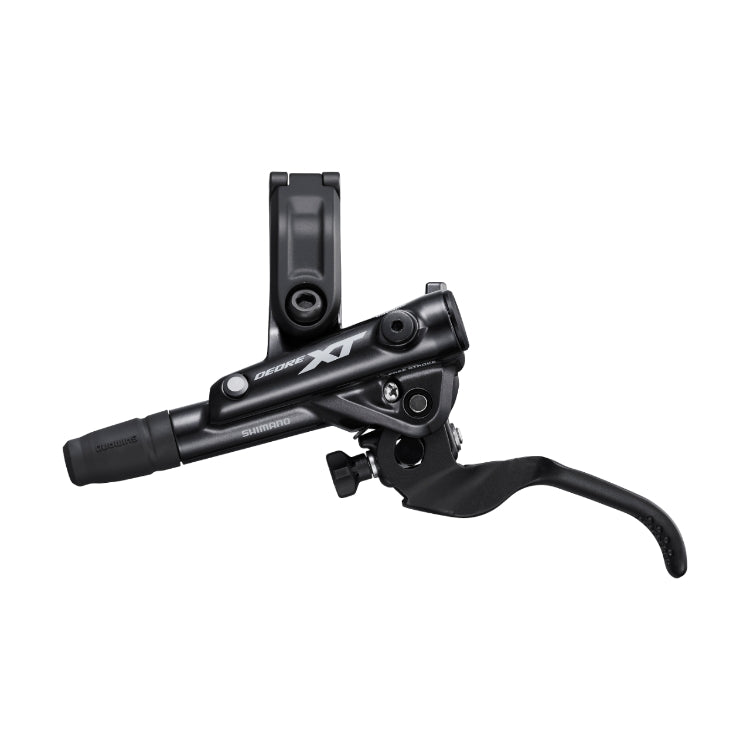

Shimano XT Brakes M8100

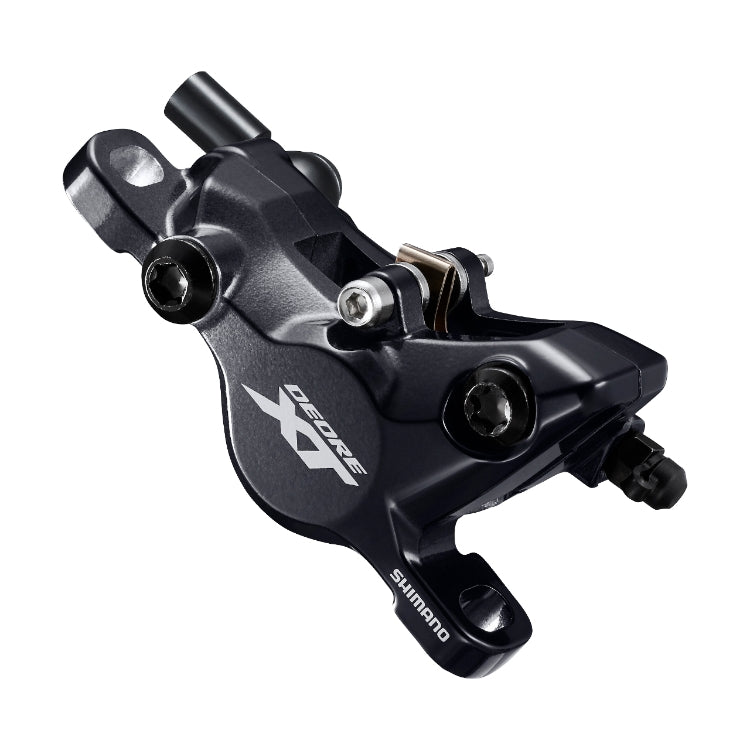

SHIMANO DEORE XT - 2-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SHIMANO DEORE XT M8100 caliper features lightweight braking performance and reliable stopping power in all conditions
- Superior modulation gives you greater control
- Quicker Piston retraction
- Lightweight
- Two piston
- Quick and easy assembly
- Banjo type connection and inside hose routing
| MODEL NO | BR-M8100 |
|---|---|
| SERIES | DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 392 |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|---|
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH90-SBM |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Snap ring |
| Caliper fixing bolt_Tool size | 5 mm |
| Hose joint | Banjo |
| Mount type | Post-type |
| ONE WAY BLEEDING | ✔ |
| Pad_Option | J03A Resin (w/ fin) | J04C Metal (w/ fin) |
| Pad_Standard | G03A Resin (w/o fin) | G04S Metal (w/o fin) |
| Pad mount | Pad axle |
| Piston | 2 |

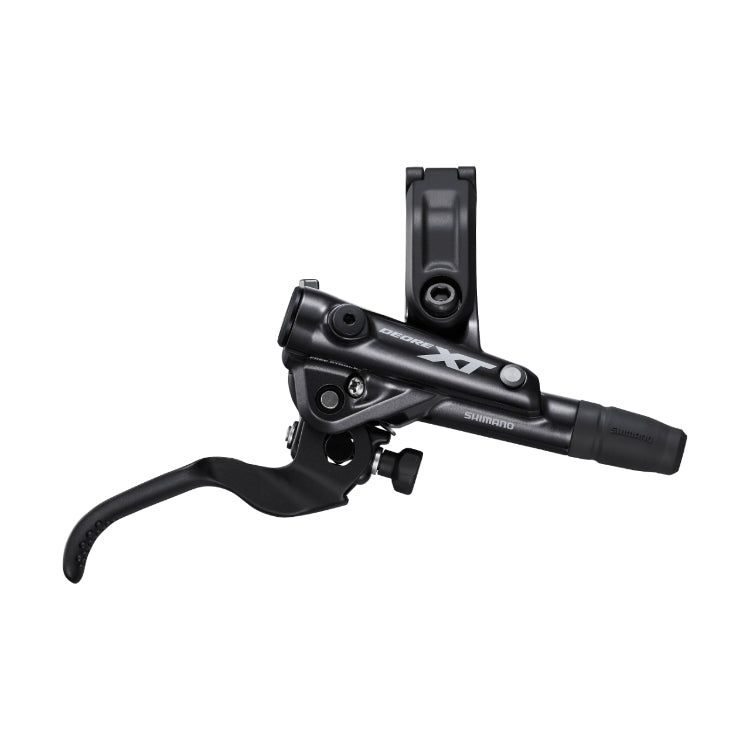

| Recommended brake lever | BL-M8100 BL-T8100 |
| Recommended disc brake rotor | RT-MT800 |
| J-Kit spec (for OEM) | ✔ |
| Oil | SHIMANO Mineral |
| Compatible Brake Rotor Size_140 mm (SS) | ✔ |
| Compatible Brake Rotor Size_160 mm (S) | ✔ |
| Compatible Brake Rotor Size_180 mm (M) | ✔ |
| Compatible Brake Rotor Size_203 mm (L) | ✔ |
| Pad_Option 1 | J03A Resin (w/ fin) |
| Pad_Option 2 | J04C Metal (w/ fin) |
| Pad_Standard 1 | G03A Resin (w/o fin) |
| Pad_Standard 2 | G04S Metal (w/o fin) |
